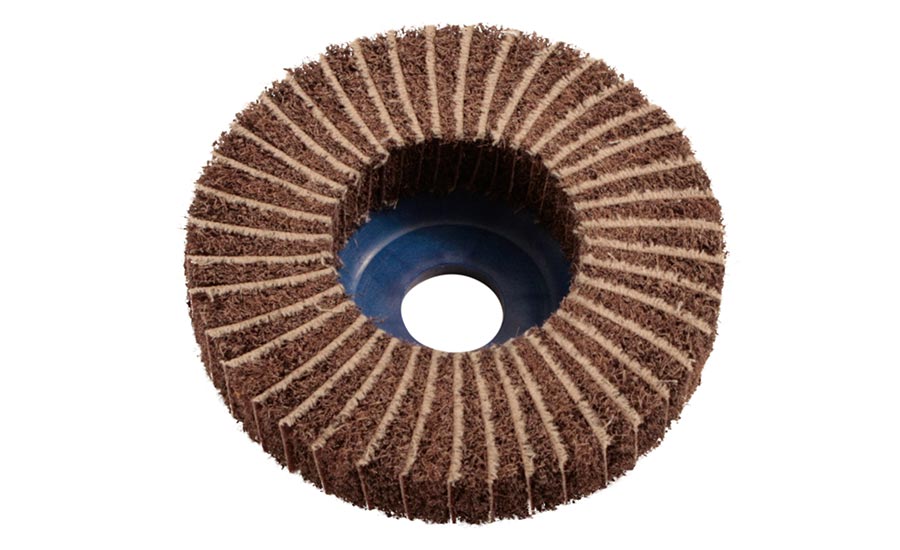

Grinding fleece lamellae combined with grinding cloth (SVL combi)

Very good combinations that demonstrate very good properties as a tool can be created from grinding fleece lamellae and abrasive cloth. A defined number of grinding fleece lamellae are linked together with grinding cloth lamellae and are then joined radially around the axis of a carrier (waterproof cardboard tube) or with resin in which a shaft is embedded.


By combining the grinding fleece lamellae and the abrasive cloth, you obtain a tool with a higher proportion of abrasive grains which produces a higher level of aggressiveness, thereby improving the abrasive performance.

The properties of these tools can be altered via the grains that are used, the number of lamellae and the impregnation.


Main areas of use:

  • The treatment of surfaces and profiles, panels and belts
  • Treatment of irregular profiles
  • Cleaning
  • Press plate cleaning
  • Matting of surfaces
  • Production of technical and decorative surfaces
  • Deburring and rounding of punched parts
  • Removal of annealing colours, scale
  • Removal of drilling burrs
  • Roughening of surfaces
  • Refining of surface structures
  • Preparation of surfaces for further processing

Materials to be treated:

  • Ferrous and non-ferrous metals
  • Cast materials
  • Wood
  • Plastic
  • Lacquer


Supply range:

Total diameter in mm:
Roller: 90 to 500
Shaft: (Diameter 3, 6, 8, 10 mm) 30 to 120

Working width in mm:
Roller: 10 to 260
Shaft: (Diameter 3, 6, 8, 10 mm) 20 to 90
